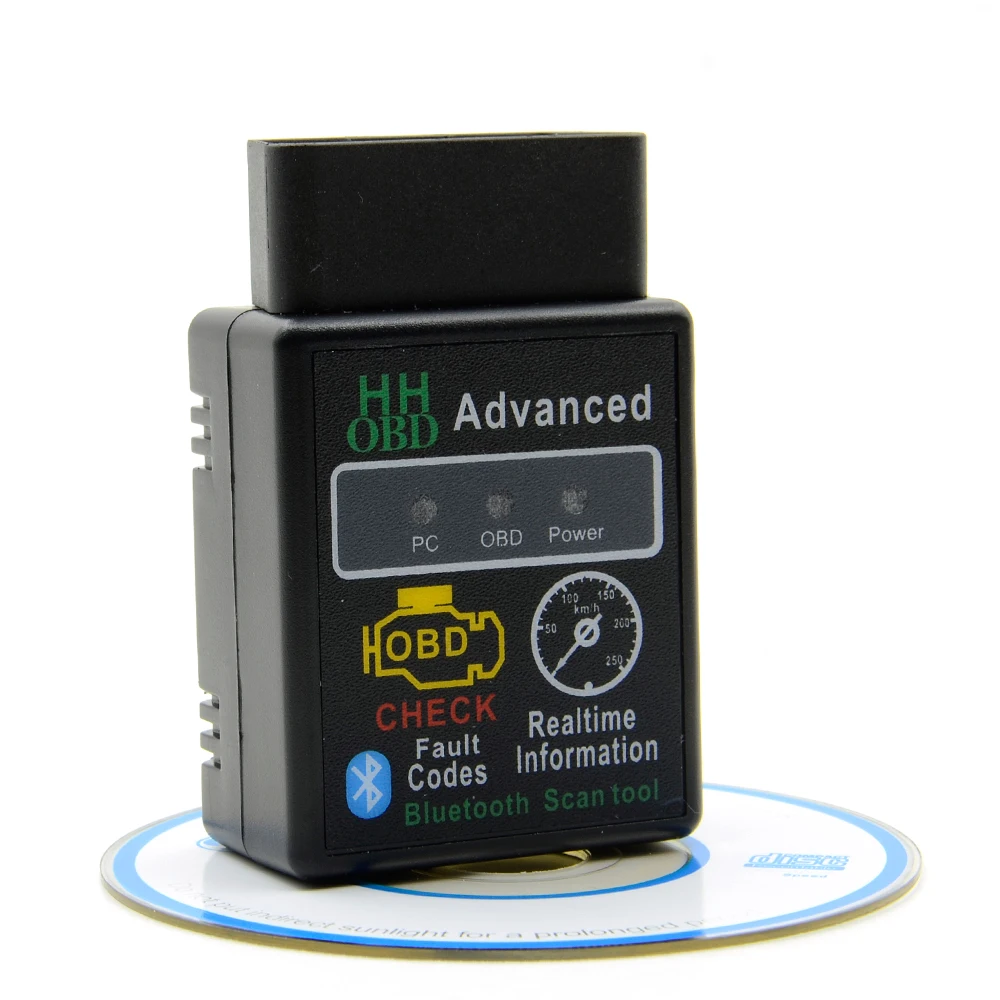

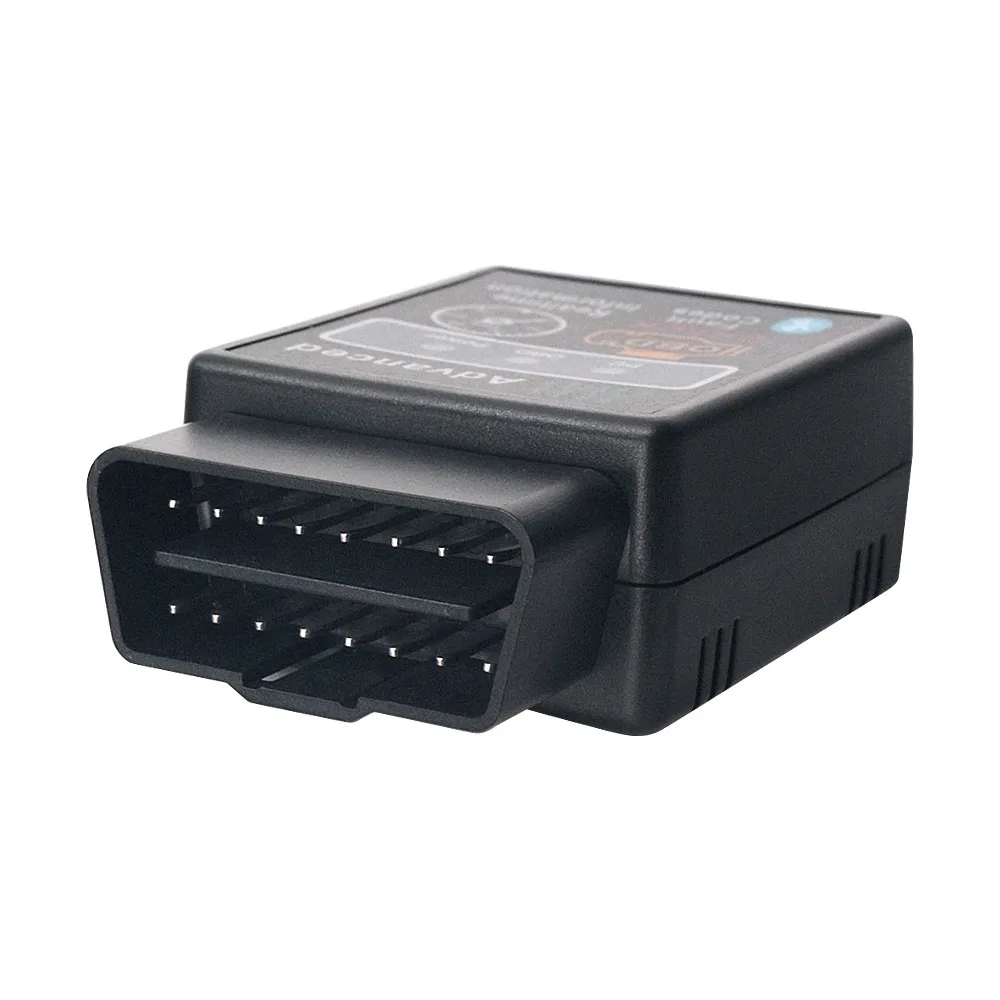

HH OBD2 ELM327 bluetooth 2.0 version +  Hardware V1.5  + Android/PC Works + PP Bag package

OBD2 ELM327 HH Scanner Highlights:

1. Software V2.1, Hardware V1.5

2. Supported Platform: Android Torque; PC; WinXP; Win7(32 bits)  No Work on IOS.

3. Bluetooth Connection Password: 1234

4. Multi-Languages: Czech, Danish, German, English, Spanish, French, Croatian, Hungarian, Italian, Polish, Serbian, Turkish . (NO Russian Language.)

5. Supply software installing video & Using Video

ELM327 Hardware V1.5 supports SAE J1850 PWM and SAE J1850 VPW, it's better than V2.1.

It can do American & European cars: Works on obd2 car from 2003 to now

Japanese Cars: Works on obd2 car from 2005 to now

Asian Cars: Works on obd2 car from 2009 to now

Multi-Protocol Support:

1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
10.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
   *default settings(user adjustable)

Q1: What is the version of the ELM327?

A1: It's hardware V1.5 with PIC18F25K80 chip, Supports ALL OBD2 protocols (10 protocols), especially J1850 & J1939 Protocols for Japanese Cars and American Cars, other elm327 only 7 or 9 protocols

Q2: Does this adapter support the diesel cars or trucks ? Is this working with IOS?

A3: ALL ELM327 does not support the diesel vehicles or trucks, and this ELM327 is bluetooth version for android, Windows XP/ Windows 7 32bits only, not for IOS.

If you need the IOS version, please refer to WIFI ELM327

Q4: Does your ELM327 Come with any software?

A4: Yes, all elm327 comes with a cd of software. If the cd is broken in shipping, please leave a message to get a link to download software.

Software for PC and for Android cell-phones are both available. Or You can download the program first directly by scanning our QR code:

Q7: What is the difference of ELM327 scanners in this link?

A7:  They are all Bluetooth elm327 v1.5,  basic functions are the same. Just difference in appearance, and there is a ON/OFF button for switch elm327.

The blue ON/OFF button is for reset/ wake up the device, because this new designed ELM327 is built with auto-sleep mode, after 30 min without communication, it will go in sleep-mode.  The Sleep mode  consumption of our scanner is only 10MA, so there is no need to worry about leaving it in car over night with plugging in.

Q8: What functions that I can do with the ELM327 ?

A7:     The device is a small adapter that plugged into the vehicle OBD-connector. On Bluetooth, it connects to any computer, tablet or smartphone( android), With associated diagnostic procedures . Doing these simple operations, you will be able:

* Read, erase and display code descriptions problems - both standard and  special manufacturers.

* Measure the fuel consumption.

* Display real-time operating performance of the car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold  pressure, throttle position, the values of oxygen sensors, air intake

temperature, and more.

* Turn off the MIL (signal Check Engine).

* Download data to external media in a variety of formats for later printing.

* Record various parameters, display graphics in real time, and more.

Q9: Is there any discount?

If you order more than 50pcs, please leave a message, I will offer you discount.

ELM327 Mini V1.5 Package Include:

1pc x HH OBD ELM327 v1.5 interface

1pc x CD driver

Attention:

1.This device support multi-brand Gasoil cars, not used for Diesel Cars and trucks.

2. This item doesn't work on IOS. If you need an item which works on IOS, please buy our WIFI OBDII.

3. ELM327 doesn't has Russian language, please pay attention

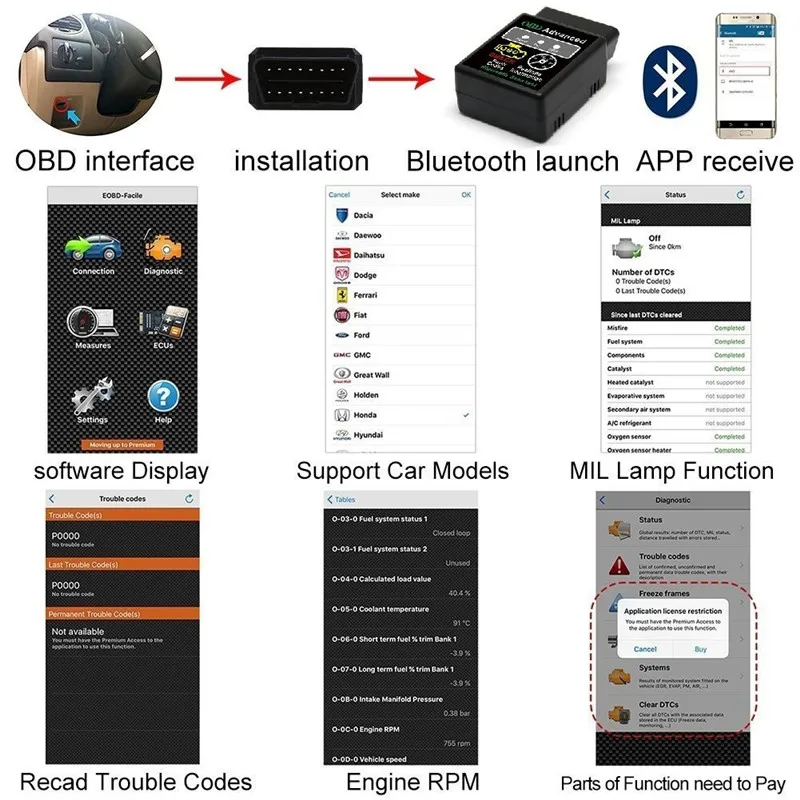

Used On Android Phones from Torque Software:
