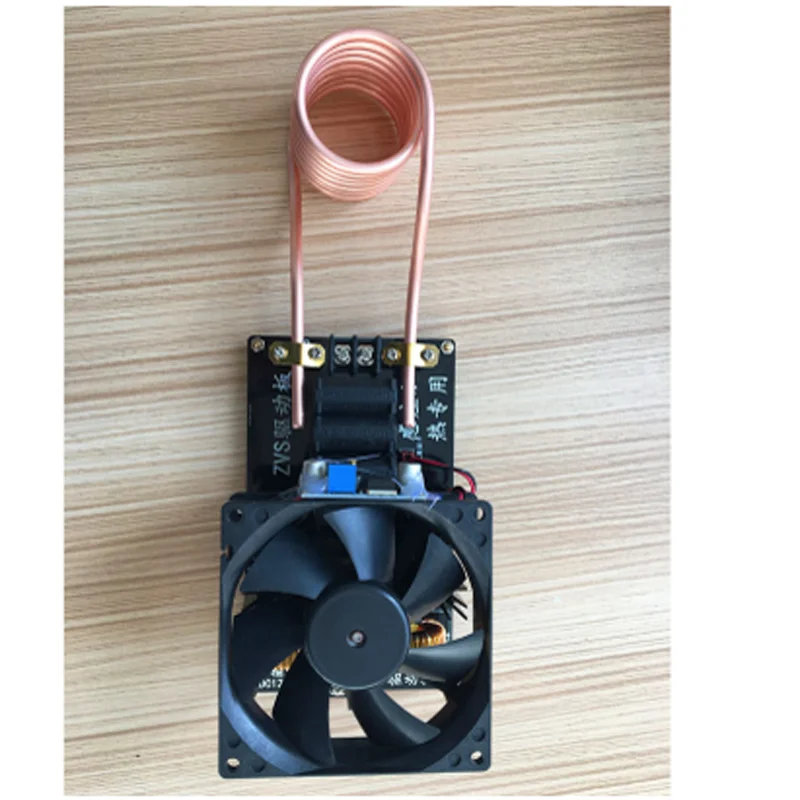

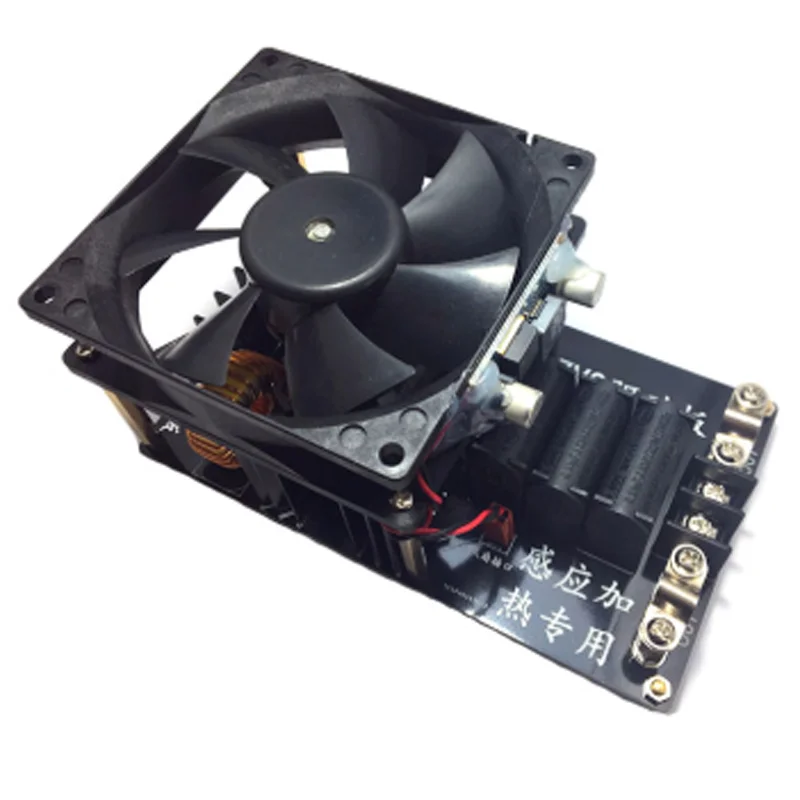

Designed for induction heating, this ZVS features an oversized PCB layout design, high heat dissipation, self-contained cooling fan, and can also be used for Tesla discharge, Marx generator, high voltage inverter power supply, etc. This induction heating circuit uses 12-48V (the cooling fan must be powered separately when the power supply is above 36V). The low-voltage DC power supply has a maximum current of 20A and a maximum power of 1000W. Because of its moderate power, it can be used for DIY players to do quenching, annealing and other heat treatment for small parts. It can also be used with graphite crucible to smelt gold, silver, copper, aluminum and other metals. The heating is even and fast, very convenient. [product parameters] Product size: 90mm * 150mm Input voltage: 12V-36V recommended 36V20A Power requirements: less than 12V ≥ 10A 15V or more ≥ 15A  For induction heating, the power supply is recommended to use a switching power supply of 36V20A or higher. If the power supply is 36V, a power supply of 20A or more is required. The higher the voltage, the larger the current. The higher the heating power, the faster the heating speed. [Baby highlights and features] The heating plate adopts 90*150mm large PCB design, and the component layout is sparse for heat dissipation. The power line is entirely copper-plated, and the current is much smaller and more stable. Anti-static 42*35 large heat sink, good heat dissipation The positioning hole adopts M3 copper column, and the support is stable and firm. The output adopts three M4 copper column parallel and 300V/25A terminal terminals for easy output under different requirements. The onboard 9*9cm cooling fan positioning hole is exactly the same as the positioning hole on the board, and it can be directly plugged into the power interface on the board. [Buyers must see the precautions] Induction heating work, in addition to the heat of the board and components, the heat of the copper tube is also very large, buyers can buy water cooling system, you can also prepare yourself When using the switching power supply, please note that due to the high power, there is a slow start function, that is, the output voltage rises slowly when the power is turned on, and if the induction heating circuit is turned on before the voltage rises to 12V, the startup voltage is insufficient. Without vibration, the two mos tubes are turned on at the same time to burn the components. Therefore, the switching power supply must be started first, and then the induction heating circuit is connected when the voltage reaches 12V or higher. When heating large solid objects such as solid metal rods, please do not exceed 20mm in diameter. Otherwise, the induction heating circuit and power supply may be burned out. The heating coil diameter of the package is 40mm, and the design voltage is up to 48V. If you use 30V or higher voltage, you must supply power. Use a heating coil with an inner diameter of 50mm or more Although this induction heating driver board can withstand more than 20A, it is recommended not to exceed 48V20A in order to prevent accidents and damage. It is absolutely forbidden to power on without power For induction heating, the copper tube in the package of this product should be used, or it should be wound according to the standard of 8 mm inner diameter of 40 mm. Otherwise, the buyer will bear the responsibility for any burning problem.
