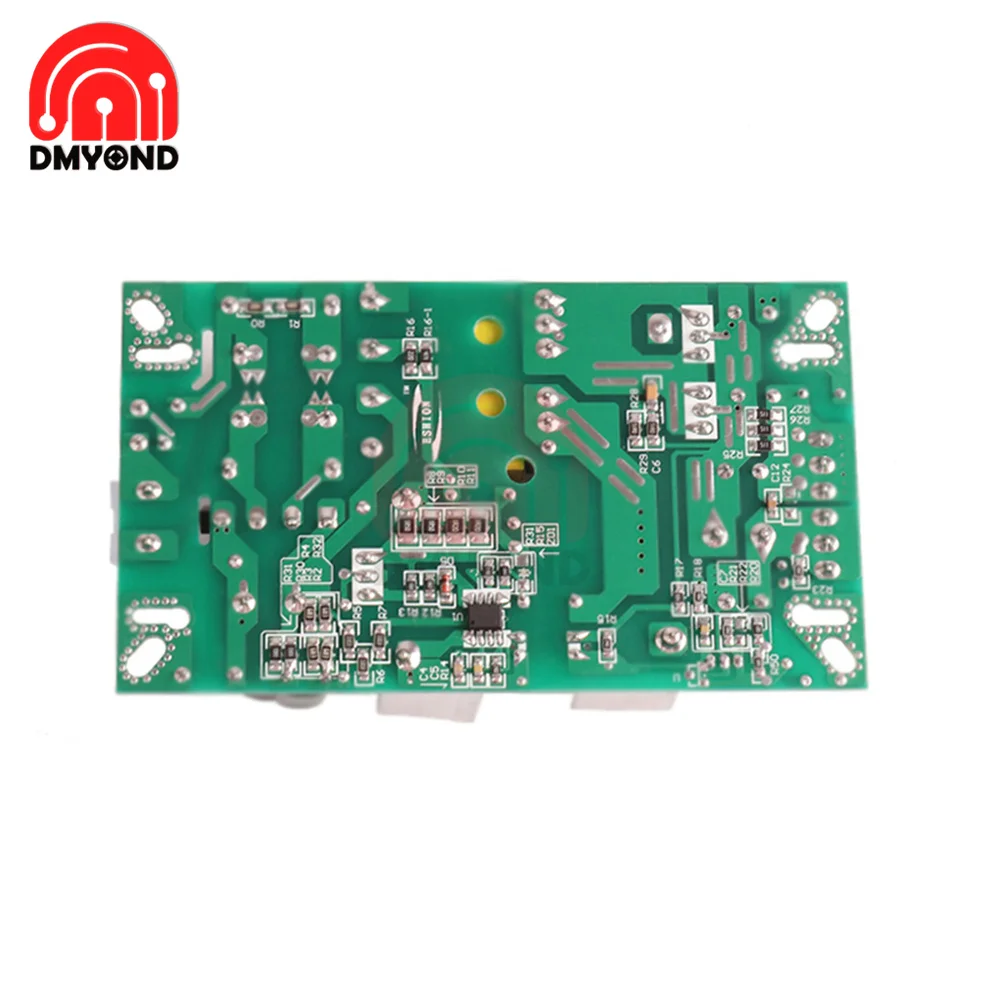

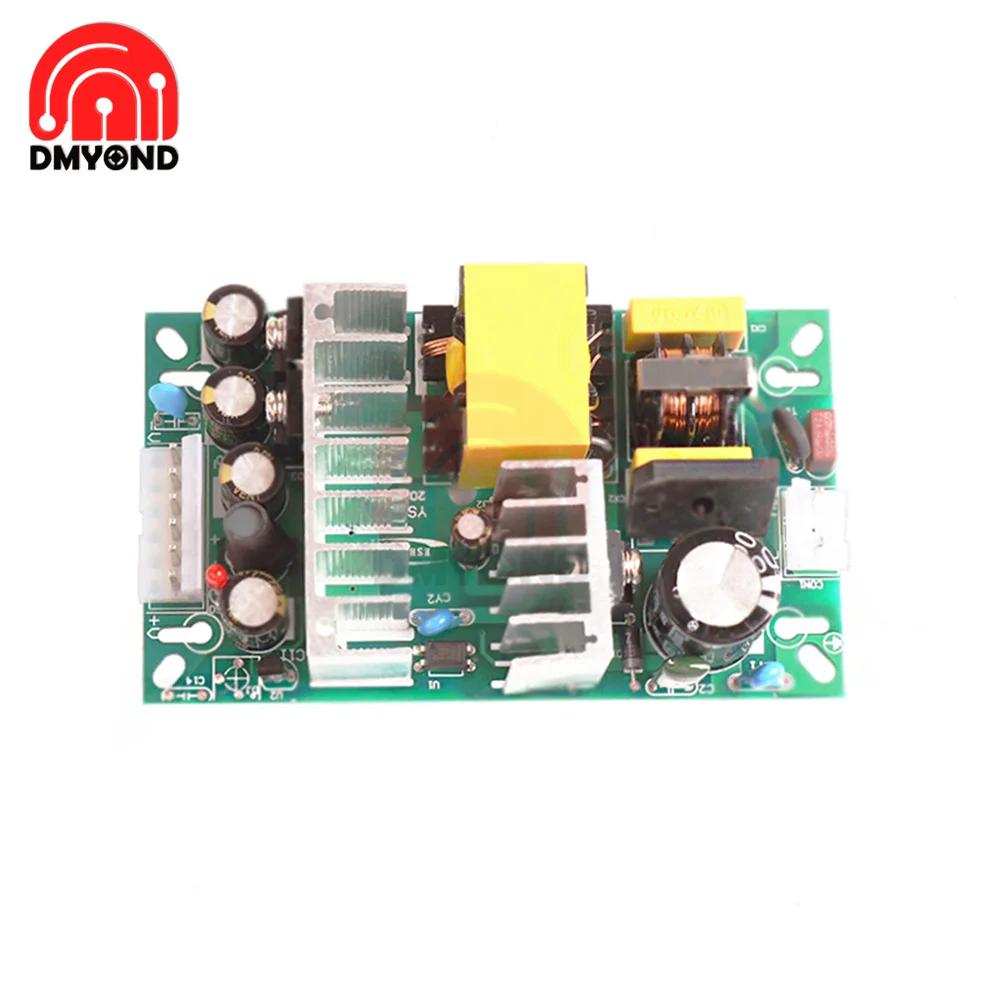

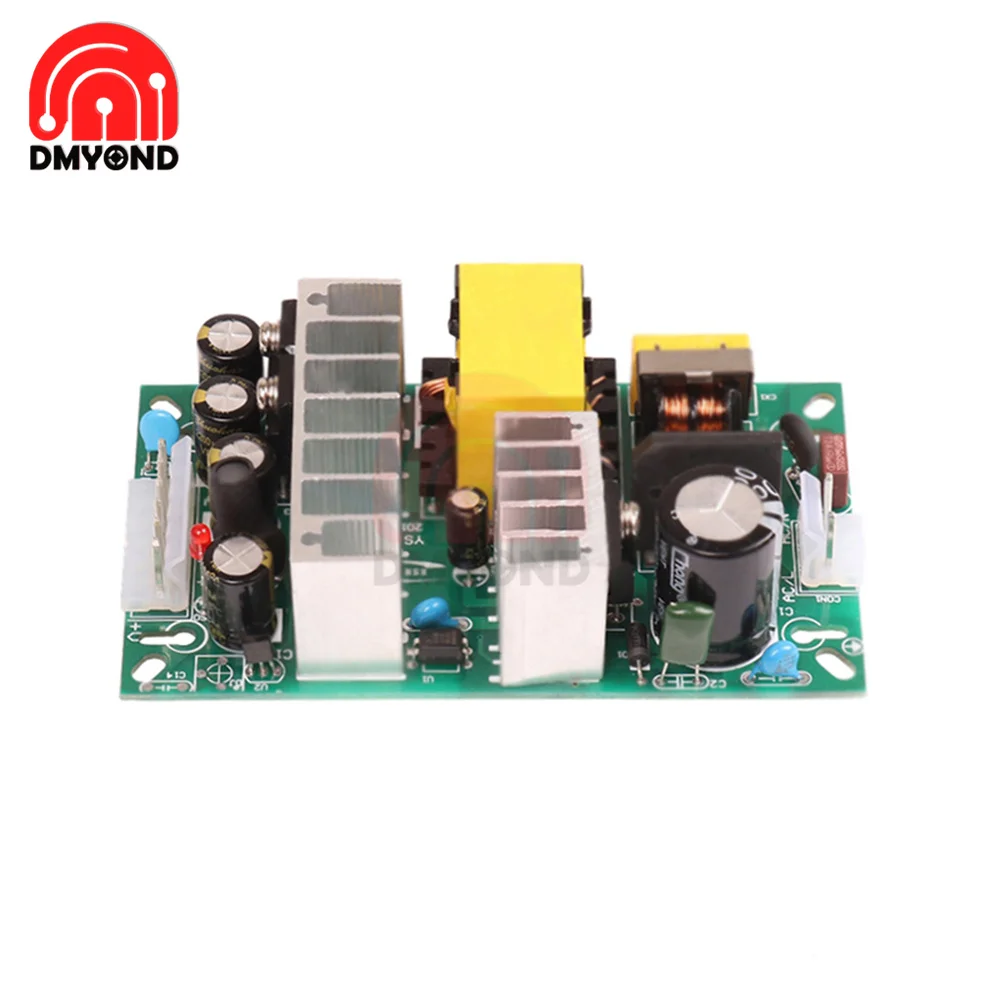

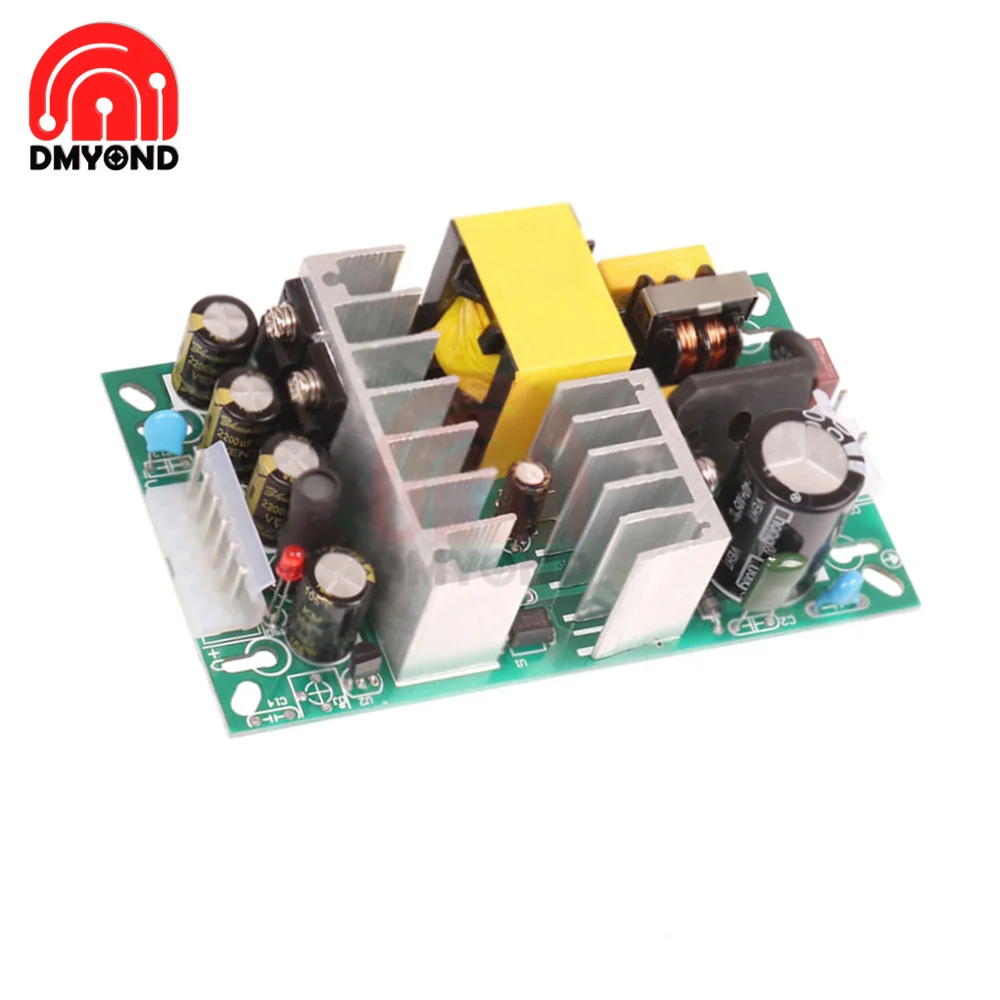

5V 10A/12V 5A/24V 3A Switching Power Supply Module AC-DC Step-Down Regulated DC Power Supply Module

Features:

1: Wide input voltage range

:2: With overload, short circuit and over temperature protection functions

3: Small size, high efficiency

4: Full load aging test

5: Ultra-low output ripple

5V Output Characteristics:

Output voltage: 5V

Rated current: 8A

Current range: 0-10A

Ripple: <100mVp-p

Output accuracy: ±1%

Voltage adjustment rate: ±1%

Load regulation rate: ±1.1%

Rated power: 40w

Adjustable output range: adjustable or fixed constant voltage and constant current can be selected

Setup, rise, hold time: 300ms, 50ms, 50ms /220VAC

12V Output Characteristics:

Output voltage: 12V

Rated current: 5A

Current range: 0-5.5A

Ripple: <100mVp-p

Output accuracy: ±1%

Voltage adjustment rate: ±1%

Load regulation rate: ±1%

Rated power: 60w

Adjustable output range: adjustable or fixed constant voltage and constant current can be selected

Setup, rise, hold time: 300ms, 50ms, 50ms /220VAC

24V Output Characteristics

Output voltage: 24V

Rated current: 2.5A

Current range: 0-3A

Ripple: <130mVp-p

Output accuracy: ±1%

Voltage adjustment rate: ±1%

Load regulation rate: ±1%

Rated power: 60w

Adjustable output range: adjustable or fixed constant voltage and constant current can be selected

Setup, rise, hold time: 300ms, 50ms, 50ms /220VAC

Checklist:

1* Power Module
