FMuser CZE-15B 15 ваттный 15W FM радиопередатчик трансляции вещания для церкви, автомобиля, дома, конференции, рождественского светового шоу.

FMuser CZE-15B 15 ваттный 15W FM радиопередатчик трансляции вещания для церкви автомобиля дома конференции рождественского светового шоу.

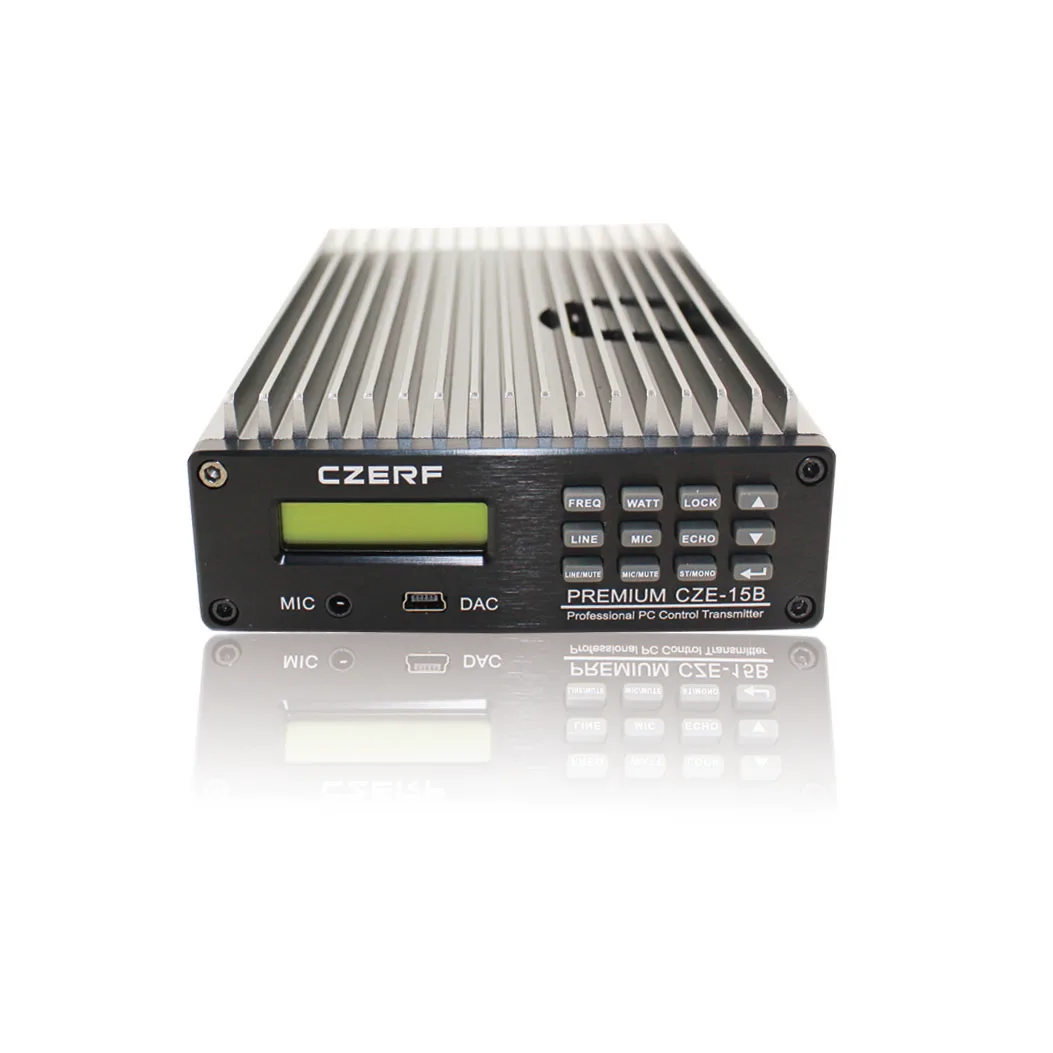

CZE-15B Professional PC Control FM Transmitter New product

SDA-15B is a PC Control versatile FM transmitter with a variety of protection features , like high-fidelity sound, excellent harmonic, good clutter suppression.

SDA-15B application is flexible, convenient and suitable for a variety of short-range wireless radio.  Such as schools,supermarkets, factories, railway stations, conferences, family and other places.

SDA-15B FM transmitter can quickly set up a reliable wireless high-fidelity sound system or FM radio wireless acoustic system, the coverage between 3 m to 15 km  depending on the environment, antenna and other factors.

Main features:

transmit power continuously adjustable from 0W to 15W.

constant power, the whole band has 3 ~ 5W margin.

transmit power automatically lock.

microphone with reverb and can be turned on or off.

Single / dual-channel conversion can be.

with PC control port, through computer manipulation of the machine.

with audio digital-analog conversion, digital input products easier.

with VSWR protection, the antenna is not connected or do not match, the automatic access to protected.

with temperature protection, when the transmitter when the temperature is too high, automatically protected.

fan with temperature control switch, automatic start or shut down properly.

panel display and intuitive, simple operation, fast.

transmitter designed, durable.

Specification:

Operating voltage 12V ~ 16V (rated voltage 15V)

Current <3A

Frequency range of 87 ~ 108MHZ

Frequency stability ± 10PPM

Frequency step 100KHZ

Operating temperature range -10 ~ 45

Antenna impedance 50Ω

Transmit power range 0W ~ 15W

Harmonics, spurious radiation ≤-60dB

Audio Distortion 0.1%

Frequency Response 50HZ ~ 15000HZ

Separation>=35 dB

Input level -15 dBV (adjustable)

Frequency deviation ± 75KHZ

SNR>=60 dB

Machine size 173 mm (L) * 110 mm (W) * 48 mm (H)

Weight about 700 grams

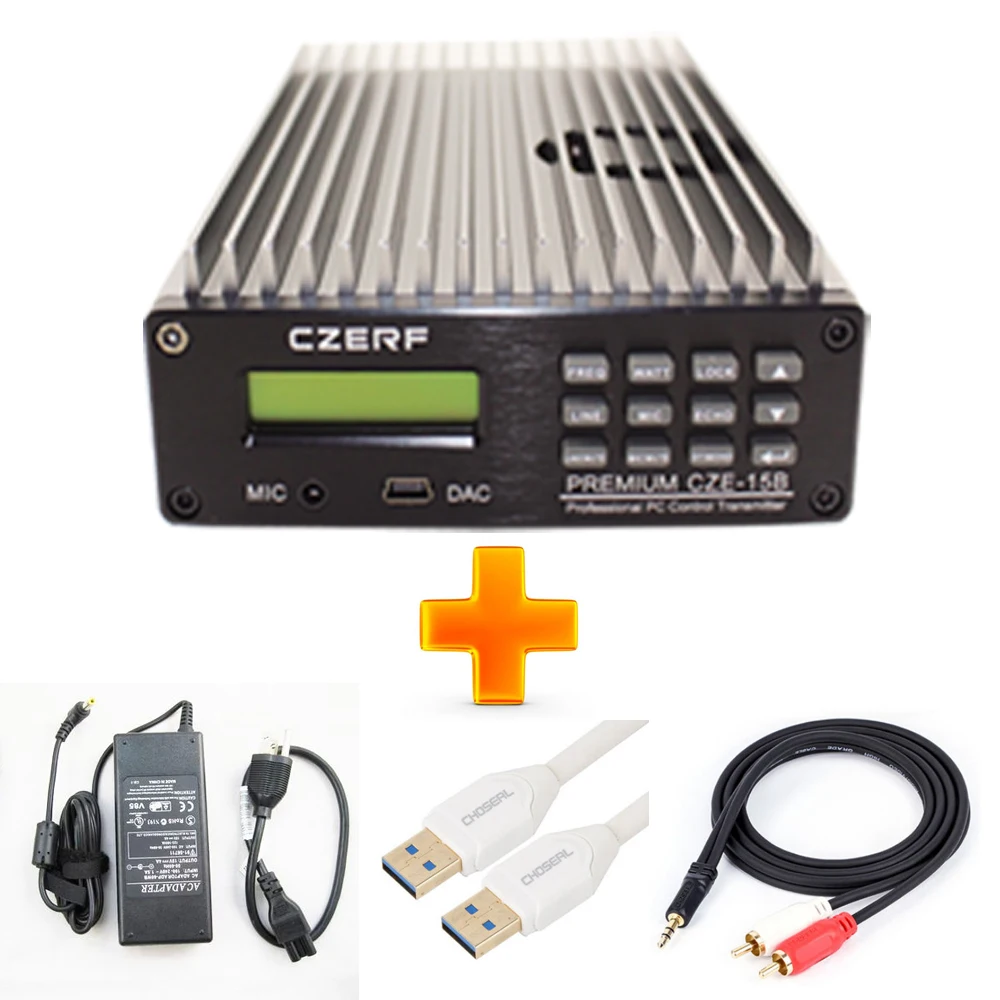

Package include:

1*CZE-15B 15W FM transmitter

1*Power adapter

1* RCA audio cable

1* USB cable

How far(long) the transmitter cover?

The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain,  using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.

EXAMPLE 5W FM Transmitter use in the city and hometown:

I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).

I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).

I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).

Below are the approximate range of different power FM Transmitters. ( The range is diameter )

0.1W ~ 5W FM Transmitter :100M ~1KM

5W ~15W FM Ttransmitter : 1KM ~ 3KM

15W ~ 80W FM Transmitter : 3KM ~15KM

80W ~500W FM Transmitter : 10KM ~30KM

500W ~1000W FM Transmitter :  30KM ~ 50KM

1KW ~ 2KW FM Transmitter : 50KM ~100KM

2KW ~5KW FM Transmitter : 100KM ~150KM

5KW ~10KW FM Transmitter : 150KM ~200KM
