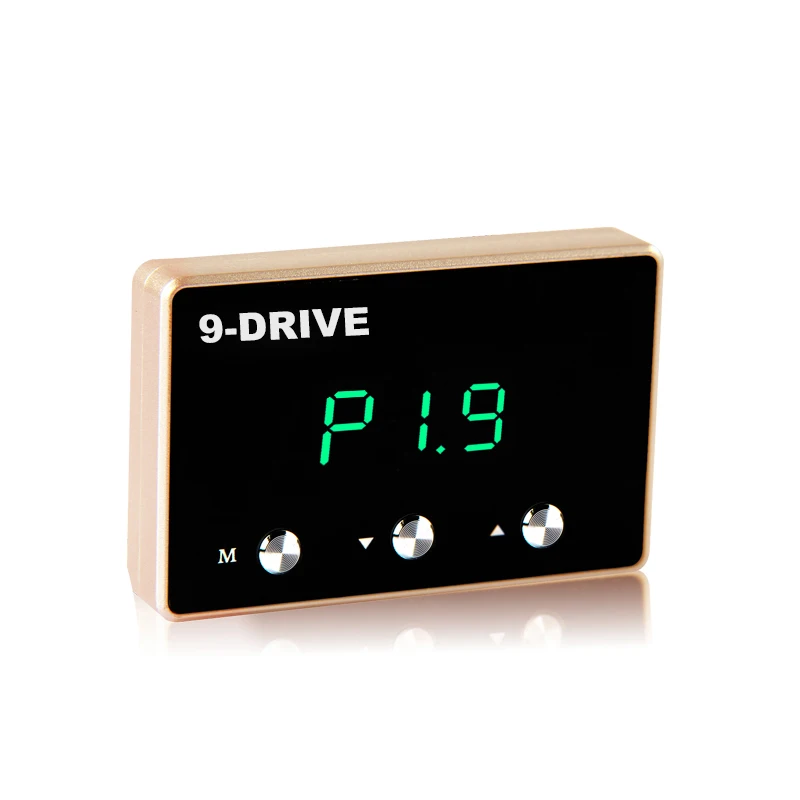

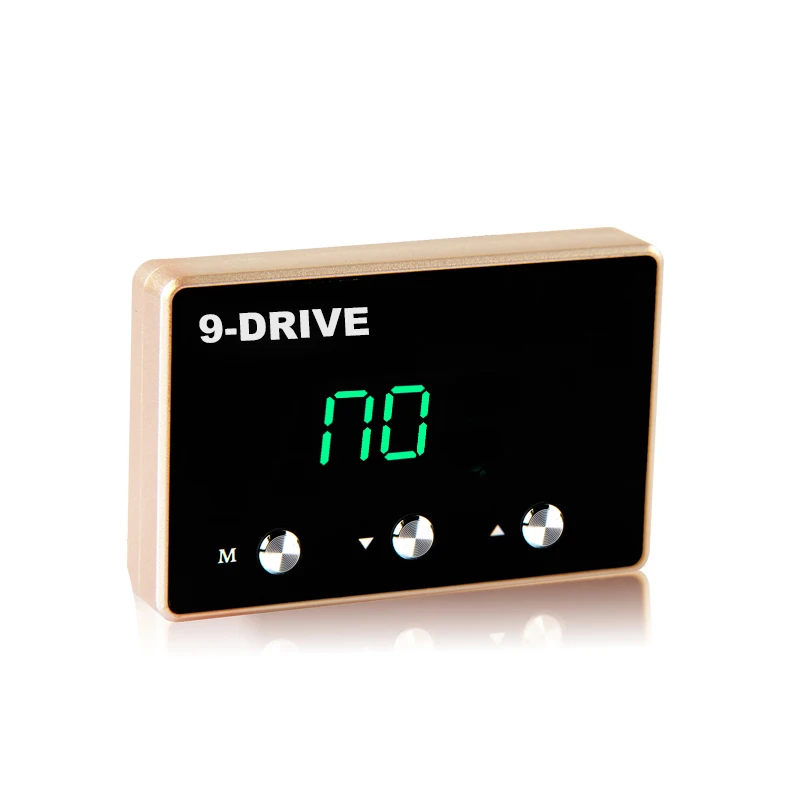

Electronic Throttle Controller for passat cc car parts 9 mode selectable LED blue Auto throttle controller Sprint booster |

Please leave message about your car model and manufacturered year when order! It is very important! Thanks! This item is drive electronic accelerator, only suitable for all electronic eginition cars.    1. Important step - Car pedal port picture comfirmation.   Please note your car make and manufacturered year when order! It is very important. TKS   Considering different countries sometimes have different car pedal models, if you can take a clear pedal port photo of your car like following demo, please leave me a message of your car pedal picture so that we can send the 100% correct mode to match. Tks

Demo:

Your car's pedal port photo:

We send the right car pedal port to match:

2. Product Main Features

1, Shorten the response speed of the electronic throttle   2, Improve the electronic throttle's sensitivity   3, Plug and play without external power supply   4, 9modes/0-10 degrees adjustable   5. It can get inio the original car mode while revsersing for optional   6. Super bright  digital display screen, blue / red for optional,the display has black,silver and golden color to choose.pls leave me a message abou whats color do you want.Tks2   The delay response on your car electronic throttle? Car strong booster help to reslove the delay problem! Improve the electronic throttle's sensitivity 15%-60%! Instant response! Cool driving! Are you ready to experience Car strong booster?   Installation steps   1  Find the original electronic throttle pedal of your car   2  When automobile is stalled and start key is off, unplug the car throttle pedal port   3  Insert our throttle controller port into throttle pedal port, and check to see whether it gets stuck in position   4 Connect the display screen with throttle controller host, then fix display screen with self-attached glue to the position under meterboard.finished   instruction    Thank you for purchasing our product. In order to make the product performance better, please read the following instruction  carefully. Part 1:Function And Specification 1.The product can improve the car handling ability by control the sensitivity of car throttle controller switch,and make it better adapt to different driving habit and road conditions. 2.there are 9 Modes as below: P1-Mode AUTO P2-Mode AUTO P3-Mode AUTO P1-Mode Manual  P2-Mode Manual P3-Mode Manual NOR-Normal Mode EC-Fuel-efficient Mode AUTO EC-Fuel-efficient Mode Manual   3. There are 9 levels ( 1-9) for the acceleration, the acceleration sense from weak to strong is very obvious, and no effect the throttle control capability. Please note: The factory default setting mode is P2.6   Part 2:Installation Instruction                      1.Connect the Throttle Controller with the accelerator Pedal interface 2.Stick the Throttle Controller on central console 3.Connect the plug with the Throttle Controller,bind the wire if necessary.                                                               Installation Diagram                                          Step1: Pull away the interface of the accelerator pedal.Please refer to picture 1                                                                          Step2: Connect the throttle controller cable plug with accelerator pedal interface .Please refer to picture 2                                                                          Step3: Tear the protection paper on the back of Throttle Controller, and stick it on the central console Part 3: Safety Cautions a.Before the installation, user need to check the Electronic Throttle Controller plug and accelerator pedal interface, they should be connect properly. b.After finish installation, please start engine under the Neutral Gear or P Gear,and check the accelerator pedal is work. c.If install the wrong direction, it will cause the accelerator pedal invalid and the warning light of engine will be on. If in this situation, please don't worry, this products has the internal protection circuit, which will prevent harms to the vehicle parts. Please turn off the engine and disassemble this product.After 2 minutes, install this product in the correct way,then it can work. Part 4:Operation a.This product can be operated by the three keys ,from left to right, the buttons are Mode, －, ＋ b.This product can be adjust with power at any time,but when adjusting the product, please pay attention to safety. c.Press the mode button, it will show: P1- Mode,P2- Mode,  P3- Mode,NOR-Normal Mode,EC-Fuel-efficient Mode d.the two button can adjust the level of the mode from weak to strong, there are 9 levels (1-9),Please note: except the Nor-Original Mode,all of above modes have 9 levels adjustment function.   Detail for 9 mode:                      P1  Mode: Increase the throttle response speed ,start become fast response and accelerate be smooth,1-9 level to adjust from weak to strong,(P1.9) refer to comfortable mode and 9 level P2  Mode: Improve the instantaneous acceleration and turning abilities, to achieve the best speed rate,1-9 level to adjust from weak to strong,(P2.9) refer to Sport Mode and 9 level                      P3 Mode: Achieve the Superior acceleration performance and make it feels like in the Racing-Field. 1-9 level to adjust from weak to strong,(P3.9) refer to Sport Mode and 9 level                NOR Normal Mode: Back to the Normal control mode. EC Fuel-efficient Mode: Achieve the best Fuel-efficient mode, about 3-8% fuel saving.                    Automatic Mode:(update core has removed this mode ,dont have any speed function) Long press"+" for 3 seconds,screen will show 888,it means enter into automatic mode                      Manual Mode:(update core has removed this mode ,dont have any speed function) Long press "－" for 3 seconds,screen will show 999,it means enter into manual mode IV. Working principle    1. Electronic Throttle and Fly-by-wire Throttle Along with rapid development of auto industry, auto manufacturers in America,    Germany, Japan and other countries successively adopted electronic throttle control    system early in 1990s. Electronic throttle control system mainly consists of throttle    pedal, pedal displacement sensor, ECU (electronic control unit), data bus wire, servo    motor and choker executing mechanism. Electronic throttle is generally adopted in    fairly new models. Electronic throttle is named in comparison with fly-by-wire throttle    which features direct connection between throttle pedal and choker with thin steel    wire. The treading depth of throttle pedal directly corresponds to the opening width    of choker. Electronic throttle is free of wire. Treading depth of throttle will be converted    into resistance value after a potentiometer (with variable resistance) is mounted in    pedal. Electronic system of automobile indirectly determines the depth of pedal through    sampling of resistance value. Finally, ECU will activate stepping motor to control the    opening width of choker. It can be easily found through principle comparison that fly-   by-wire throttle features simple system and direct control, with the proportion of the    opening width of throttle and choker being 1:1. Characteristics of electronic throttle    are as follows: throttle pedal only indicates driver's operating intention, while the    final right to control choker belongs to ECU.       2. Characteristics of Electronic Throttle Control System and ECU(ECU) In models with electronic throttle control system, ECU will analyze the treading depth    of throttle in combination with auto conditions when controlling electronic choker, and    then calculate appropriate opening width of choker at the current time. When diver    speeds up suddenly at the time of startup (tread the pedal to the utmost), ECU will    perform analysis according to the current auto speed, opening width of choker and    other factors, appropriately restrict the opening width of choker from the perspective    of fuel saving and reasonable exhaust emission, and control fuel spray system to    restrict maximum spray of fuel injection nozzle at the same time. In this way, driver    will feel that automobile begins to start after throttle is treaded for a while, which is    the so-called throttle lagging. Therefore, throttle lagging is actually the result of ECU    operation through restricting instant output of engine, which can make automobile    more environmental-friendly and energy-saving.       3. Operating Principle of STRONG BOOSTER (1) Accelerating choker opening and improving static response "Acceleration" of STRONG BOOSTER is realized mainly through improving the responding    sensitivity of choker. When ECU finds that driver has the intention for acceleration, it    will activate rapid opening of choker via circuit signals to improve the responding    sensitivity of throttle.  (2) Speeding up throttle signals and improving dynamic response When accelerator treads on throttle pedal, STRONG BOOSTER will calculate the alteration&]��#3B   rate of throttle signals according to treading depth and time. Alteration rate is in    proportion to accelerating requirements. STRONG BOOSTER will enhance such alteration    rate and finally realize maximum dynamic response of auto acceleration. (3) Providing false driving style for ECU's adjustment of engine parameters ECU of modern engine generally has the capacity of self-adapting driving style. If    driver often treads on throttle quickly to a considerable depth (also known as pulling    speed), ECU will gradually consider that the driver's style tends to be "violent". In this    way, engine will slowly adjust choker and fuel spray system, etc. to obtain optimal    adjusting parameters of engine under this style. After STRONG BOOSTER is used for a    long time, even if the driver drives the car with previous "mile" driving style, engine    will still acquire experience of "violent" driving, which is equivalent to the adjustment    of ECU parameters. At the long last, engine will automatically amend its parameters    to adapt to such driving style.   Shipping Fee   1. If the seller has set Buyer Pays Return Shipping, you should pay for the return shipping fee directly by yourself. 2. If the seller has set Seller Pays Return Shipping, you can communicate with seller in advance about the payment method and return logistics method. 3. About the shipping fee of sending the goods, if it's "free shipping", then seller pays the fee and buyer can get full refund while sending back the original goods; if buyer pays the shipping fee, then buyer can only get refund of the product price.   Returns:   We do our best to serve our each customer the best that we can. We will refund you for items returned within 7 days of you receiving them, for any reason. A full refund will be given if items are returned in their original condition. Merchandise which is damaged or missing components is not refundable. Buyers are responsible for return shipping with proper packaging. On receiving items, we will refund you immediately.   Warranty &Maintenance:   We provide 1 month replacement and 12 months maintenance warranties. Items can be replaced during the first month or maintained for the first year. Buyers are only responsible for the return shipping fees for warranty items.(In most cases, buyer will only have to return the problem components rather than the entire package.).      Before returning items, please make sure you get our (the sellers) return address, and write gift on the delivery detail sheet. Please use regular postal service and send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.

3. Working principle

1. Electronic Throttle and Fly-by-wire Throttle
Along with rapid development of auto industry, auto manufacturers in America,

Germany, Japan and other countries successively adopted electronic throttle control

system early in 1990s. Electronic throttle control system mainly consists of throttle

pedal, pedal displacement sensor, ECU (electronic control unit), data bus wire, servo

motor and choker executing mechanism. Electronic throttle is generally adopted in

fairly new models. Electronic throttle is named in comparison with fly-by-wire throttle

which features direct connection between throttle pedal and choker with thin steel

wire. The treading depth of throttle pedal directly corresponds to the opening width

of choker. Electronic throttle is free of wire. Treading depth of throttle will be converted

into resistance value after a potentiometer (with variable resistance) is mounted in

pedal. Electronic system of automobile indirectly determines the depth of pedal through

sampling of resistance value. Finally, ECU will activate stepping motor to control the

opening width of choker. It can be easily found through principle comparison that fly-

by-wire throttle features simple system and direct control, with the proportion of the

opening width of throttle and choker being 1:1. Characteristics of electronic throttle

are as follows: throttle pedal only indicates driver's operating intention, while the

final right to control choker belongs to ECU.



2. Characteristics of Electronic Throttle Control System and ECU(ECU)
In models with electronic throttle control system, ECU will analyze the treading depth

of throttle in combination with auto conditions when controlling electronic choker, and

then calculate appropriate opening width of choker at the current time. When diver

speeds up suddenly at the time of startup (tread the pedal to the utmost), ECU will

perform analysis according to the current auto speed, opening width of choker and

other factors, appropriately restrict the opening width of choker from the perspective

of fuel saving and reasonable exhaust emission, and control fuel spray system to

restrict maximum spray of fuel injection nozzle at the same time. In this way, driver

will feel that automobile begins to start after throttle is treaded for a while, which is

the so-called throttle lagging. Therefore, throttle lagging is actually the result of ECU

operation through restricting instant output of engine, which can make automobile

more environmental-friendly and energy-saving.



3. Operating Principle of  strong booster
(1) Accelerating choker opening and improving static response
"Acceleration" of strong booster is realized mainly through improving the responding

sensitivity of choker. When ECU finds that driver has the intention for acceleration, it

will activate rapid opening of choker via circuit signals to improve the responding

sensitivity of throttle.
(2) Speeding up throttle signals and improving dynamic response
When accelerator treads on throttle pedal, strong booster will calculate the alteration

rate of throttle signals according to treading depth and time. Alteration rate is in

proportion to accelerating requirements. strong booster will enhance such alteration

rate and finally realize maximum dynamic response of auto acceleration.
(3) Providing false driving style for ECU's adjustment of engine parameters
ECU of modern engine generally has the capacity of self-adapting driving style. If

driver often treads on throttle quickly to a considerable depth (also known as pulling

speed), ECU will gradually consider that the driver's style tends to be "violent". In this

way, engine will slowly adjust choker and fuel spray system, etc. to obtain optimal

adjusting parameters of engine under this style. After strong booster is used for a

long time, even if the driver drives the car with previous "mile" driving style, engine

will still acquire experience of "violent" driving, which is equivalent to the adjustment

of ECU parameters. At the long last, engine will automatically amend its parameters

to adapt to such driving style.



4. Match car model sheet.

Part-specific models (There are nearly 200 models dedicated interface)

Etc. over 200 model!!!

Note: Please note your car make and manufacturered year when placing the order!

5. Installation manual

1  Find the original electronic throttle pedal of your car

2  When automobile is stalled and start key is off, pluck the port of electronic throttle pedal

3  Insert electronic throttle coupler into auto line port. Insert electronic coupler into the groove of throttle pedal and check to see whether it gets stuck in position.

4  Insert electronic throttle coupler and display adjuster into each other in position.

5 Then fix display controller with self-attached glue to the central control position or any position you like.finished
