Condition: New
Fits following vehicles
2007-2012 Nissan Altima 2.5L I4(Compressor part DCS171C)
2007-2012 Nissan Sentra 2.5L I4(Compressor part DCS171C)
How to install:
1. It should be ensured that the clutch is faulty. For example, check if the power supply circuit is working normally.
If the power supply circuit works normally, the clutch does not pull in. This situation needs to be replaced.
2. Remove the compressor, remove the old electronetic clutch, check the compressor for dae, and clean the front cover and coil contact surface of the compressor without confirming that the compressor is not faulty.
3. Install a new coil and secure it with a screw or shaft with a circlip.
4. Install the pulley and fix it with the circlip of the shaft. Check if the pulley rotates with the coil and the friction is unqualified.
To check the reason.
5. Install the suction cup and adjust it to a reasonable space between 0.2-0.6MM with the space pad. After fixing the suction cup, check whether the suction is normal. After the power is off, the rotating pulley is separated from the suction cup.
No friction is qualified.
6. Install the compressor.
Material:metal
colour:Black + Silver

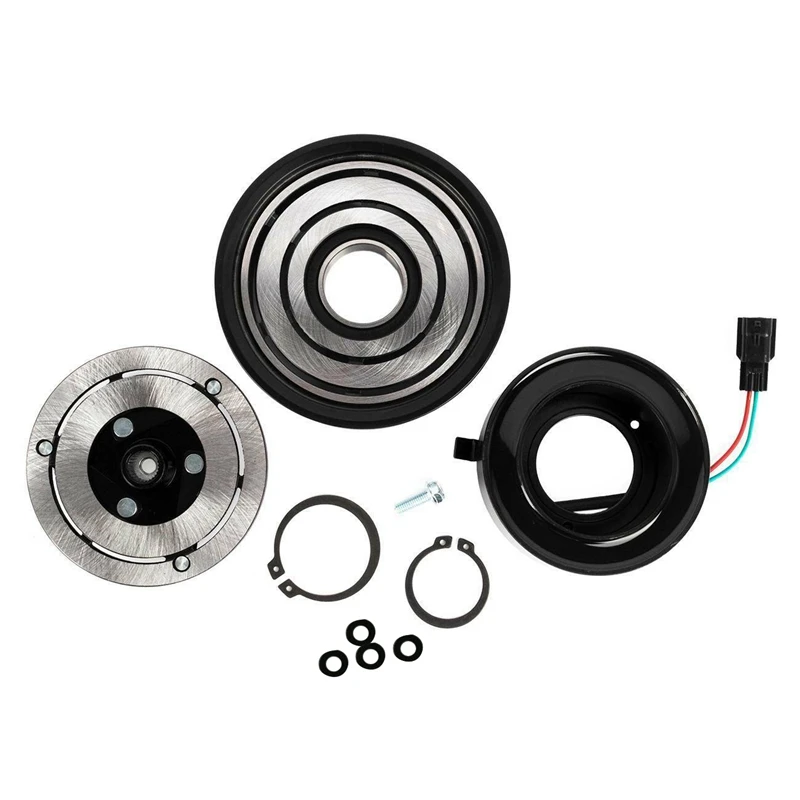

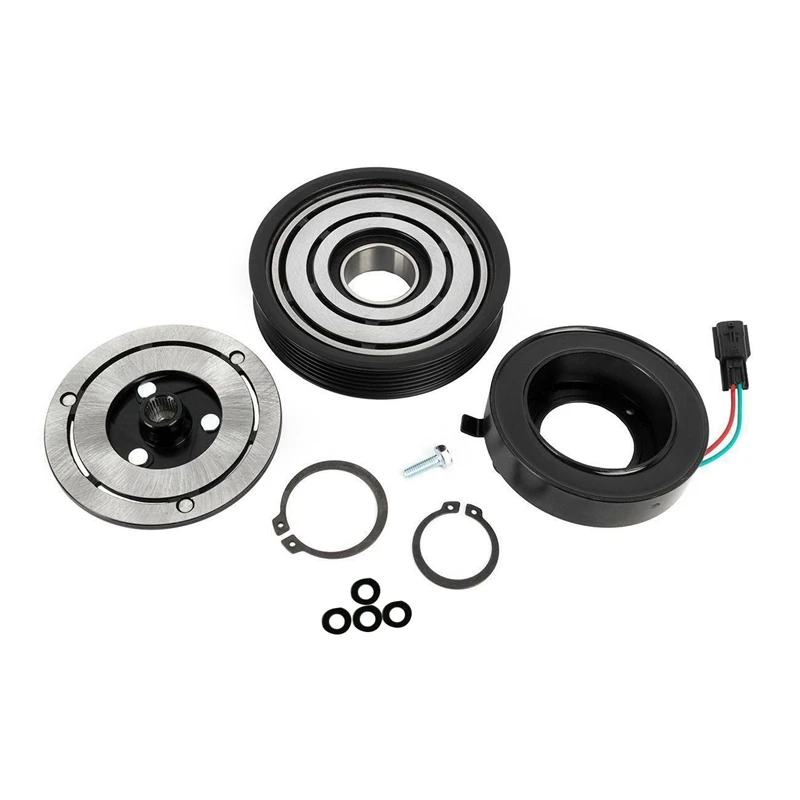

Package Contents:

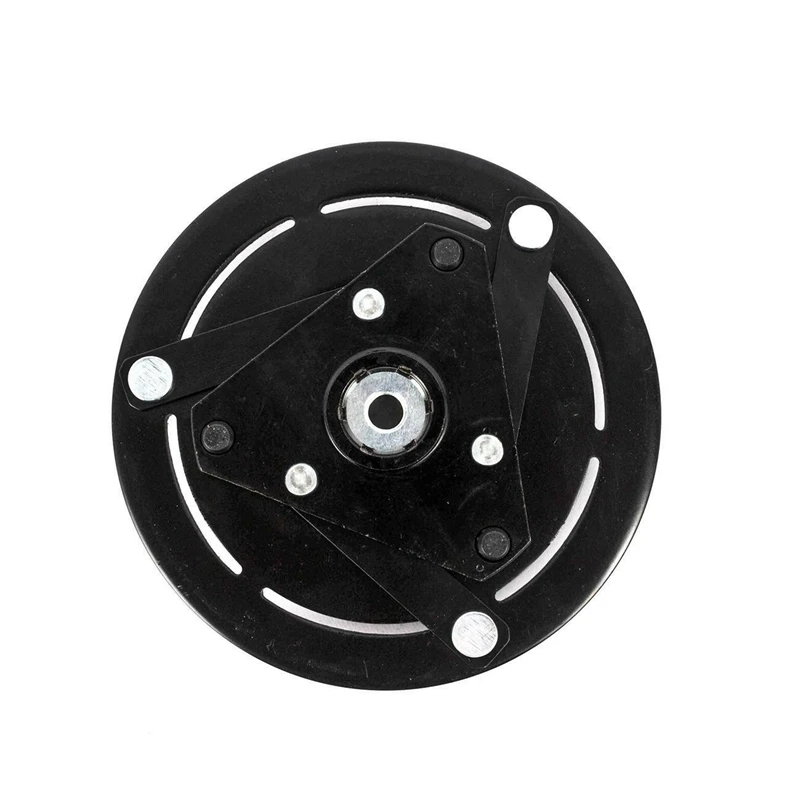

1 * Clutch Plate

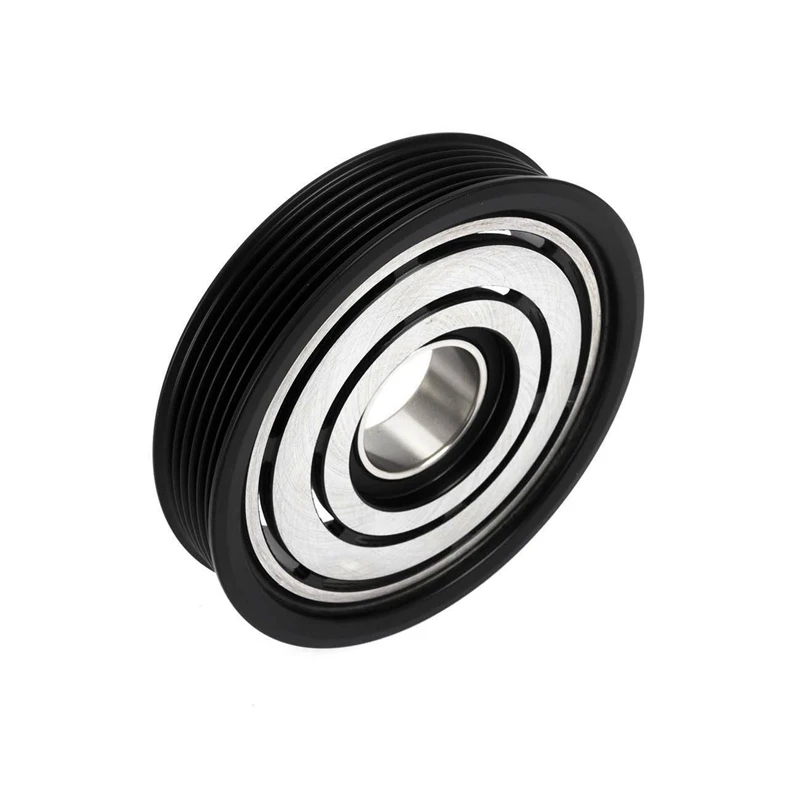

1 * Pulley Bearing

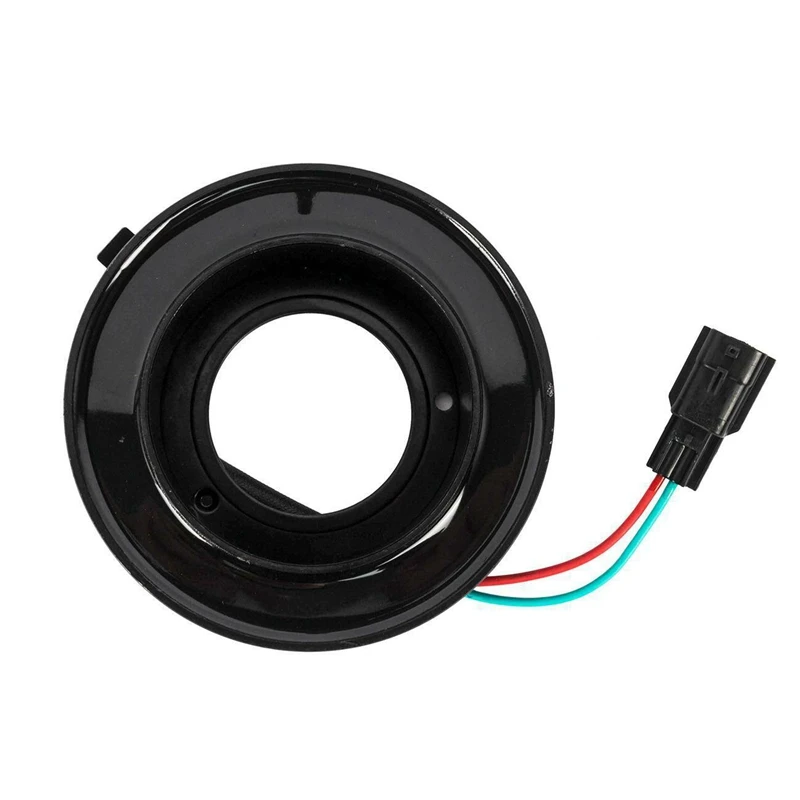

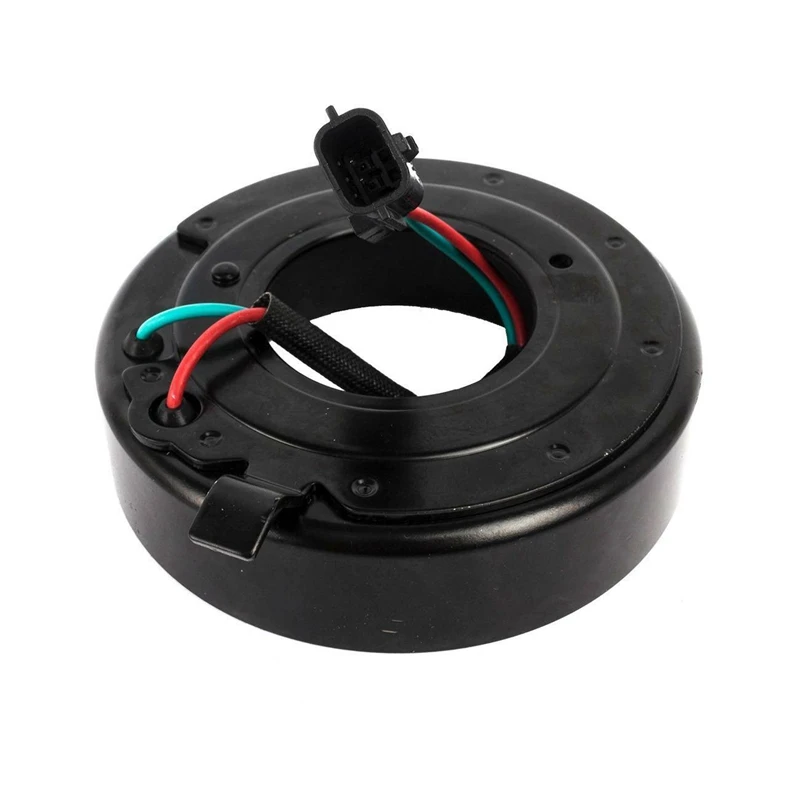

1 * Electronetic Coil
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
